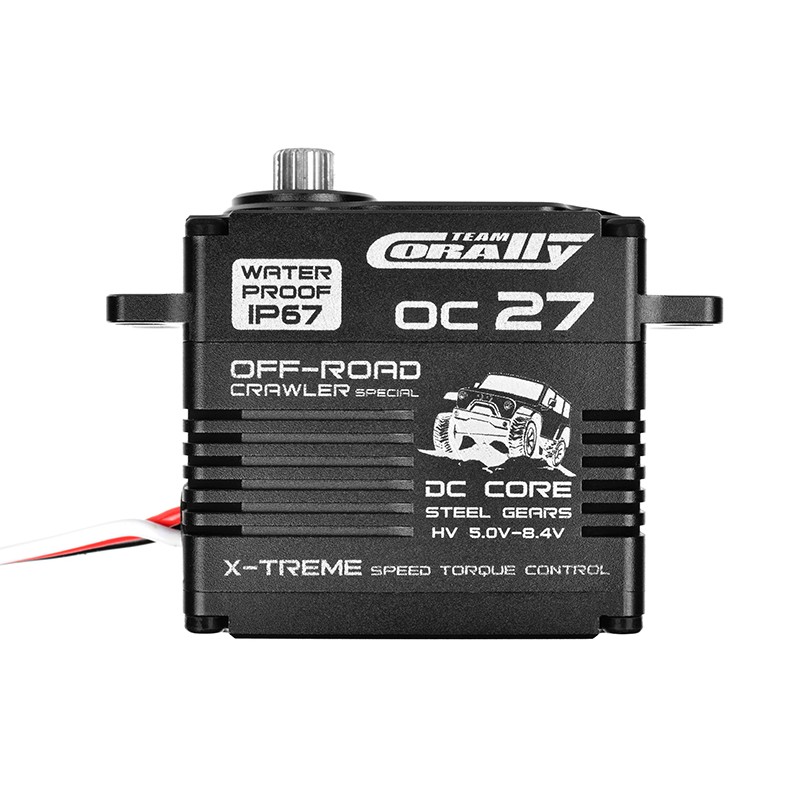

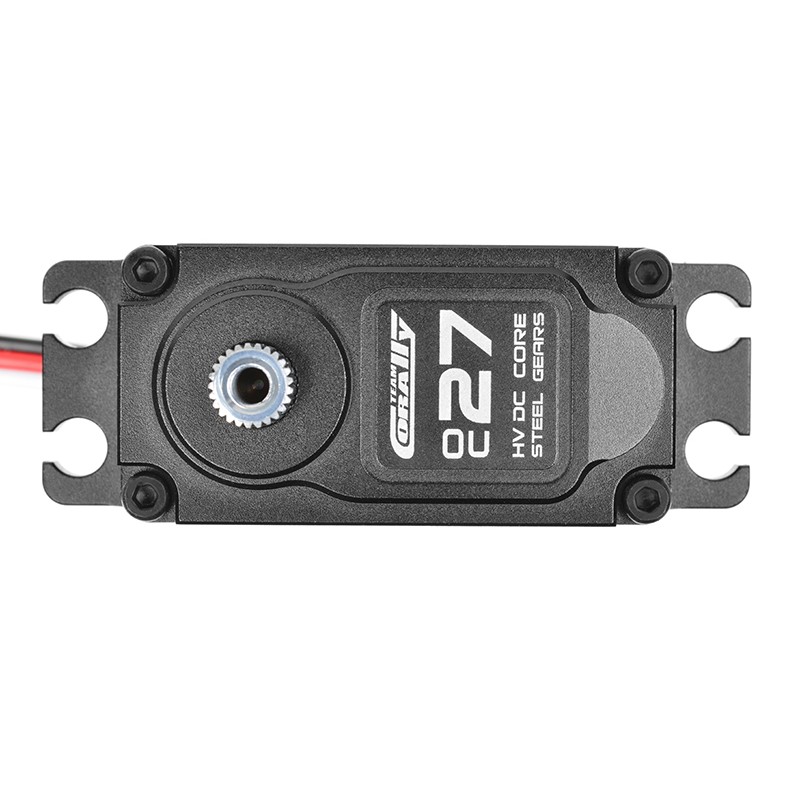

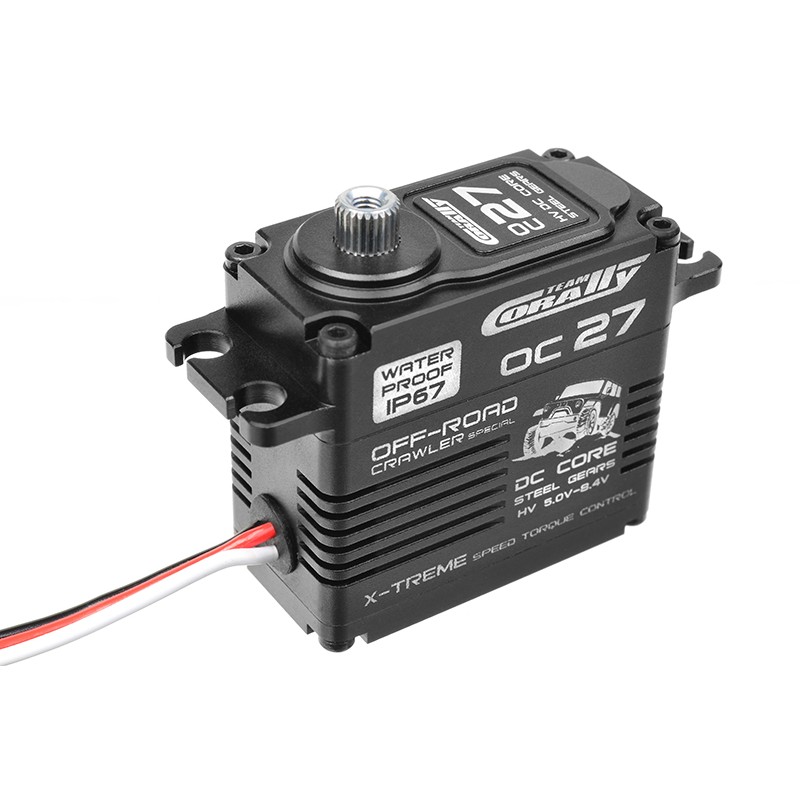

Referencia: C-52015
Features:
- Full CNC machined alloy case
- Digital LHV 5.0 - 8.4V
- Metal gears
- Ball Raced
- Core DC motor
- High speed and torque
- IP67 Waterproof
Tech. Specs:
Voltage range 5.0 - 8.4V
Speed @ 6.0V 0.15 sec/60°
Speed @ 7.4V 0.13 sec/60°
Speed @ 8.4V 0.11 sec/60°
Torque @ 6.0V 17.7 kg/cm
Torque @ 7.4V 23.6 kg/cm
Torque @ 8.4V 27.3 kg/cm
Dimensions (mm) 40.4x20.4x36.7
Weight 75g / 2.55oz
| Brandname: | TC - Corally |
| Motor Type: | Core Motor |
| Servo Technology: | Digital Ultra High Voltage |
| Input Voltage (V): | 6.0V - 8.4V |
| Weight (g): | 75 g |
| Servo Type / Size: | Standard |
| Length (mm): | 40,4 mm |
| Gear Material: | Steel Gears |
| Width (mm): | 20,4 mm |
| Ball Beared: | Ball Beared |
| Height (mm): | 36,7 mm |
| Servo Case: | CNC alloy |
| Servo Power - Torque Kg/cm: | > 25 Kg/cm |
| Servo Speed 60°/sec: | 0.11 - 0.15 Sec/60° |
| Speed 60°/Sec @ 6.0V: | 0,15 sec/60° |
| Speed 60°/Sec @ 7.4V: | 0,13 sec/60° |
| Speed 60°/Sec @ 8.4V: | 0,11 sec/60° |
| Torque kg/cm @ 6.0V: | 17.7 Kg/cm |
| Torque kg/cm @ 7.4V: | 23.6 Kg/cm |
| Torque kg/cm @ 8.4V: | 27.3 Kg/cm |

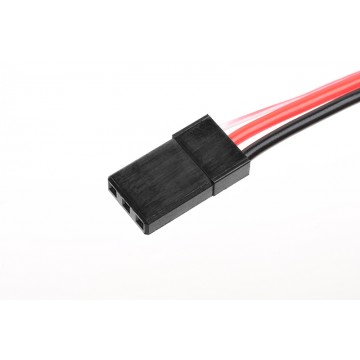

| Connector type: | JR |
| Spline size: | 25T Spline |
| Water Protection: | Waterproof IP67 |
Features:
- Full CNC machined alloy case
- Digital LHV 5.0 - 8.4V
- Metal gears
- Ball Raced
- Core DC motor
- High speed and torque
- IP67 Waterproof
Tech. Specs:
Voltage range 5.0 - 8.4V
Speed @ 6.0V 0.15 sec/60°
Speed @ 7.4V 0.13 sec/60°
Speed @ 8.4V 0.11 sec/60°
Torque @ 6.0V 17.7 kg/cm
Torque @ 7.4V 23.6 kg/cm
Torque @ 8.4V 27.3 kg/cm
Dimensions (mm) 40.4x20.4x36.7
Weight 75g / 2.55oz
