SkyRC T1000 Maestro Charger
Arm® Cortex®-M4 and HyperBoost Power Couple
Supercharged by ARM Cortex®-M4
Push your next RC racing trip beyond the edge with SkyRC T1000! The Arm Cortex-M4 chip takes our most versatile, dual output T1000 into another dimension with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types.
Multiplied by Proprietary HyperBoost
Thanks to the 200 MHz ARM Micro controller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.

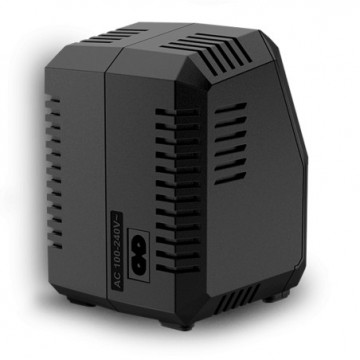

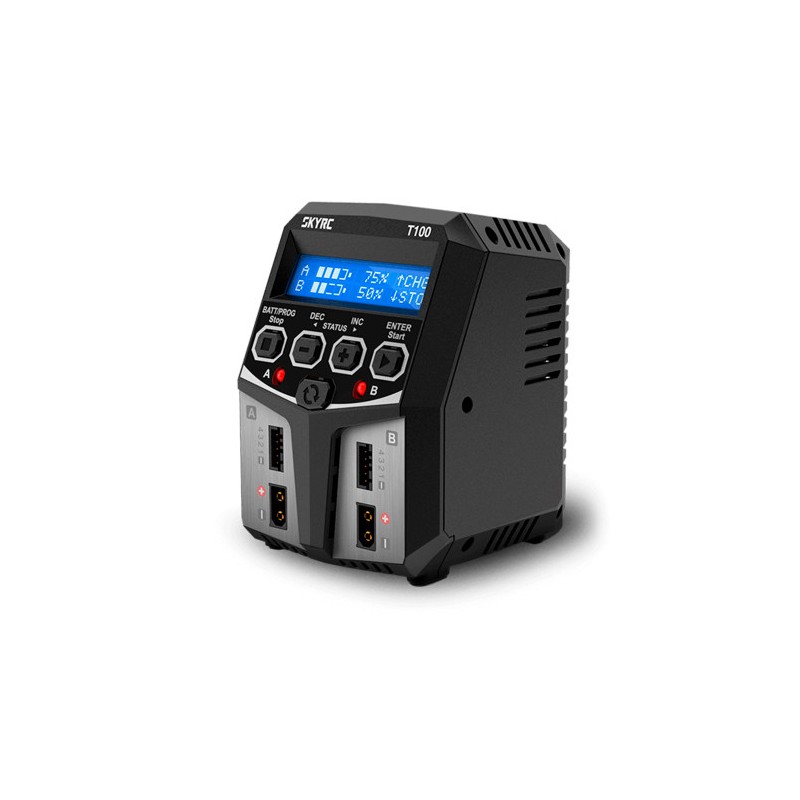

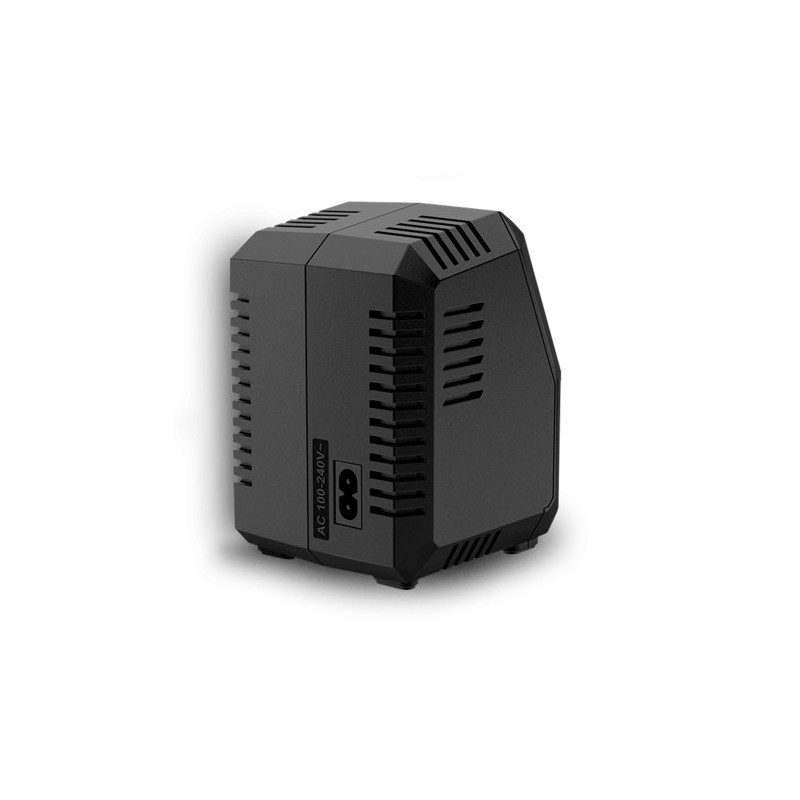

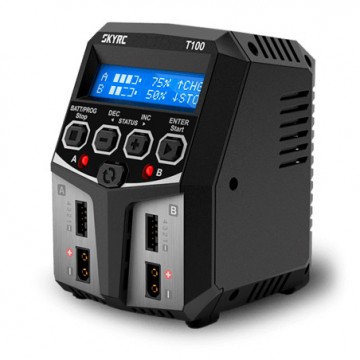

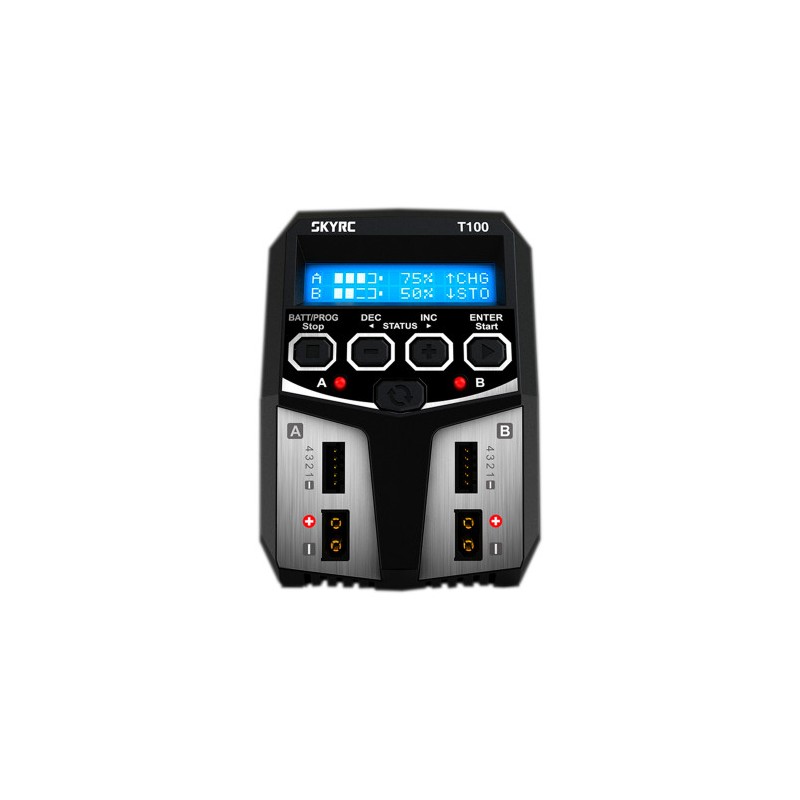

CARGADOR T100 DUO LIPO2-4S 0.1-5A 2X50W 240V AC SKYRC
Referencia: SK100162
Multi-purpose for Most Chemistries With Generic XT60
SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more sufficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries in cold days.
SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration.
T100 Specifications:
- Input Voltage: 100-240VAC (50/60Hz)
- Power: 2x50W
- Output Charge Connector: XT60
- Output Balance Connector: XH
- Weight: 500g
- Size: L90 x W100 x H127 mm
- Battery Voltage Detection: Yes
- Anti-Reverese Protection: Yes
- Short Circuit Protection: Yes
- Over Current Protection: Yes
- Beep Sound on Buttons/Alarm: Yes on/off
- Working Enviroment Temperature: 0-40ºC
- Working Enviroment Humidity: 0-80%
- Storage Enviroment Temperature: -10-60ºC
- Storage Enviroment Humidity: 20-70%
Battery Types:
- Output Socket: XT60 (XT60 batteries can be connected directly - all other needs an charge lead)
- NiMH/NiCd: 6-8 cells (7.2-9.6V)
- Pb: 6/12V
- LiHV/LiPo/LiIon/LiFe: 2-4 cells
Output Current:
- NiMH/NiCd: 0.1-5A
- LiHV/LiPo/LiIon/LiFe: 0.1-5A
- Pb: 0.8-5A
- Balance: Max 300mA
- Trickle NiCd/NiMH: 50-300mA & off
Operation Modes - NiCd/NiMH:
- Charge
- Re-Peak: 1-3 times
Operation Modes - LiHV/LiPo/LiIon/LiFe:
- Balance
- Charge
- Storage
Operation Modes - Pb:
- Pb Normal Charge
- Pb AGM Charge
- Pb Cold Charge
