Multi-purpose for Most Chemistries With Generic XT60
SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more sufficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries in cold days.
SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration.
CARGADOR E680 LIPO/LIFE/LIHV 1-6S 10A 80W 240V AC SKYRC
Referencia: SK100149

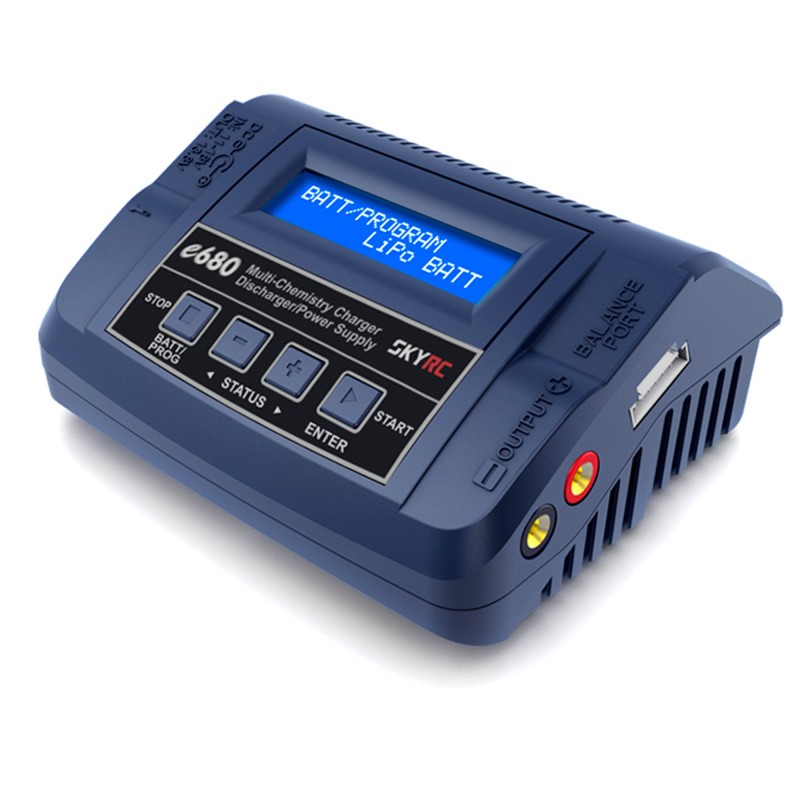

This is an enhanced version of the earlier e660 multicharger, the SkyRC e680 is suitable for all current battery types: LiPo, Li-ion, LiFe, NiCd, NiMH, PB and also new generation LiHV with end voltage 4.35V per cell, with the maximum 80W charge power and 8A charge current. Especially it supports DJI Mavic Battery with maximum 4A charge power.
The e680 is capable of operating as a power supply with a maximum output of 80 watts so that it helps the hobbyists to power the DC equipment.
DC Power Supply
SkyRC e680 charger is integrated with DC power supply, which output voltage is 13.8V with power ranging from 10W to 80W. That is really convenient for drivers to power their DC devices, such as tire warmer, Pit light, etc.
Support Charging DJI Mavic Battery
SkyRC e680 can charge DJI Mavic battery with the maximum charge current of 4A. The Mavic charging cable (SK600023-06) is not included in the package. You need to purchase it separately.

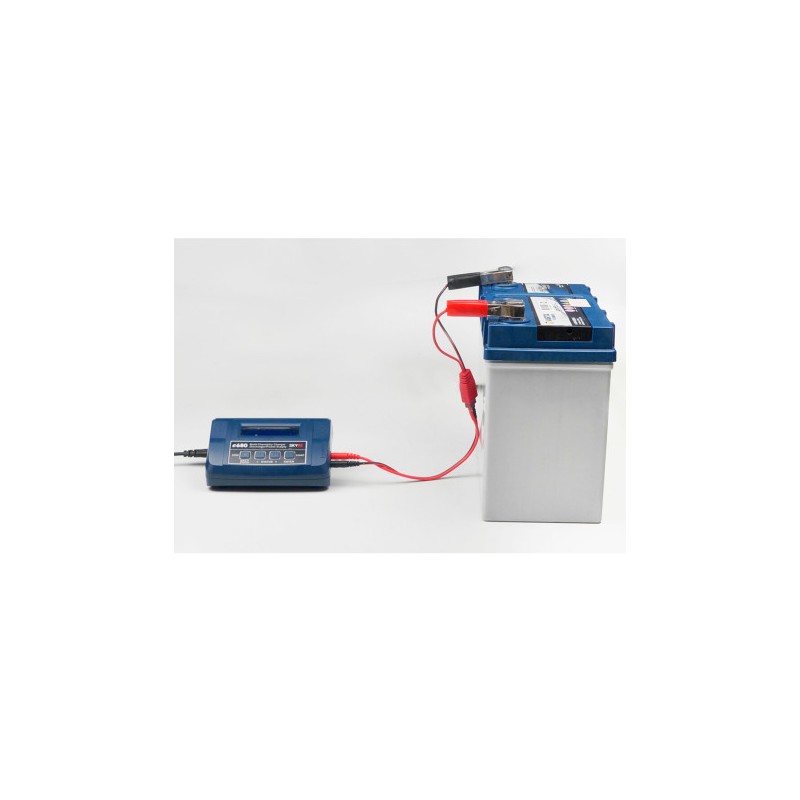

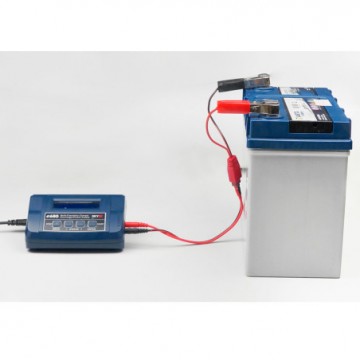

AGM & Cold - Charge Modes for Pb Battery
SkyRC e680 can charge AGM battery and also can be used for charging Pb battery at very low temperatures.
Thermal Cut-off
Battery internal chemical reaction will cause the battery temperature to rise. When the temperature limit is reached, the process will be terminated. This function is available by connecting optional temperature sensor cable (SK600040), which is not included in the package. You need purchase it separately.

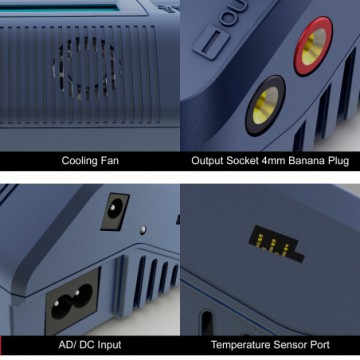

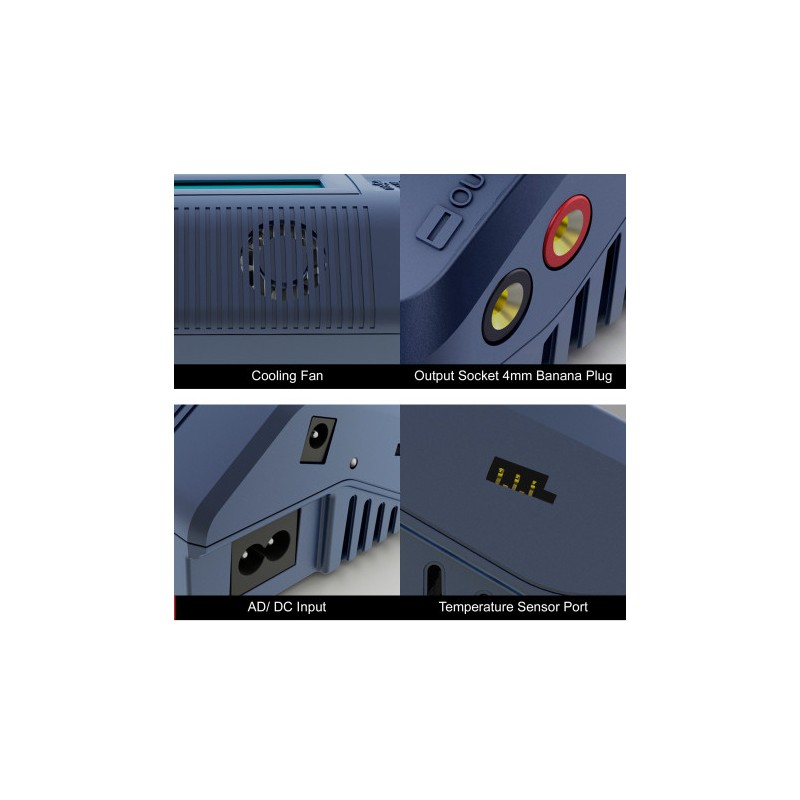

Smart & Efficient Cooling System
Temperature controlled 8000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.
Included:
- SKYRC e680 Charger
- Power Cord
- XT60 Connector Charging Cable
- DC Cable with Alligator Clip
- XH Adaptor
Specifications:
- DC Input Voltage: 11-18V
- AC Input Voltage: 100-240V
- Display Type: 2x16 LCD
- Display Backlight: Blue
- Case Material: Plastic
- Controls: Four Buttons
- Case Size: 135 x 110 x 60mm
- Weight: 390g
- External Port: 1-6S Balance Socket-XH, Temperature Probe Socket,Battery Socket & DC Input
- Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
- Battery Cut-Off Temperature: 20-80ºC (adjustable)
- Balance Current: 300mA/cell
- Reading Voltage Range: 0.1-26.1V/cell
Charge Voltage:
- NiMH/NiCd: Delta peak detection
- LiPo: 4.18-4.25V/cell
- LiHV:4.25-4.35V/cell
- LiFe: 3.58-3.7V/cell
- LiIon: 4.08-4.2V/cell
- DJI: 13.05V
- Pb Normal: 2.4V/cell
- Pb AGM: 2.45V/cell
- Pb Cold:2.45V/cell
Battery Types/Cells:
- LiPo/LiHV/LiFe/LiIon: 1-6cells
- NiMH/NiCd: 1-15cells
- Pb: 2-20V
- DJI: 3cells (LiHV)
Battery Capacity Range:
- NiMH/NiCd: 100-50000mAh
- LiPo/LiHV/LiFe/LiIon: 100-50000mAh
- Pb: 100-50000mAh
- Charge Current: 0.1A-8.0A
- Safety Timer: 1-120minutes off
- Charge Wattage: 80W
- Discharge Current: 0.1A-2.0A
Discharge Cut-off Voltage:
- NiMH/NiCd: 0.1-1.1V/cell
- LiPo: 3.0-3.3V/cell
- LiHV: 3.1-3.4V/Cell
- LiFe: 2.6-2.9V/cell
- LiIon: 2.9—3.2V/cell
- Pb: 1.8-2.0V/cell
- Discharge Wattage: 10W
- Balance Cells: 2-6 cells
- Memory: 10 different charge/discharge profiles
Charge Method:
- CC/CV for lithium types and lead (Pb) batteries
