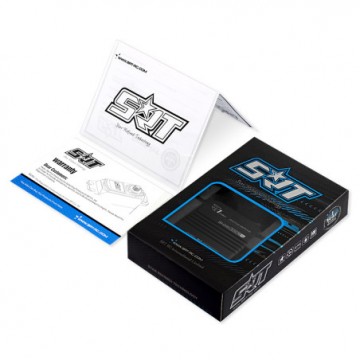

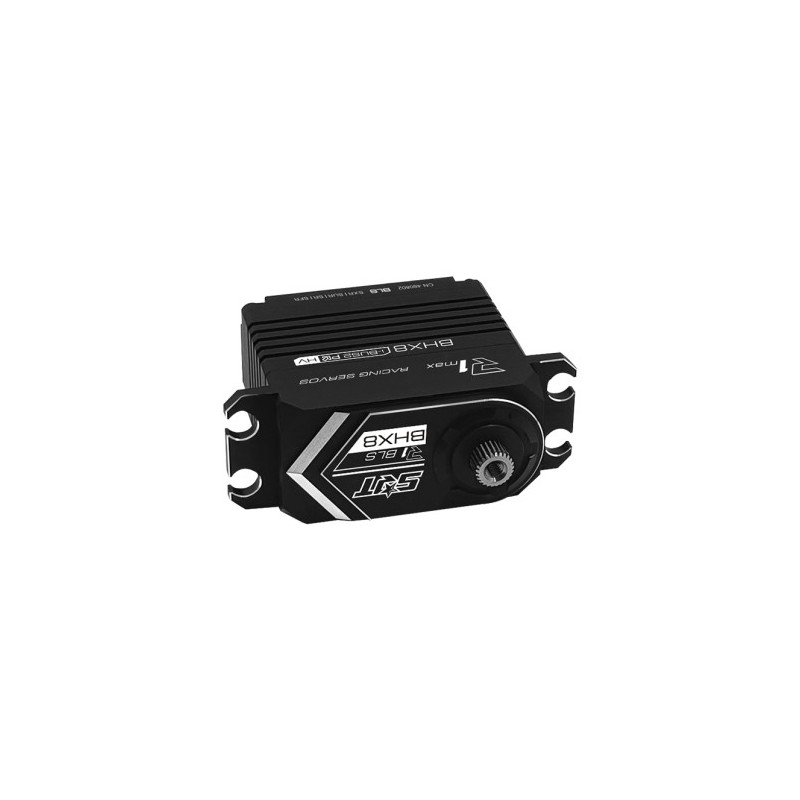

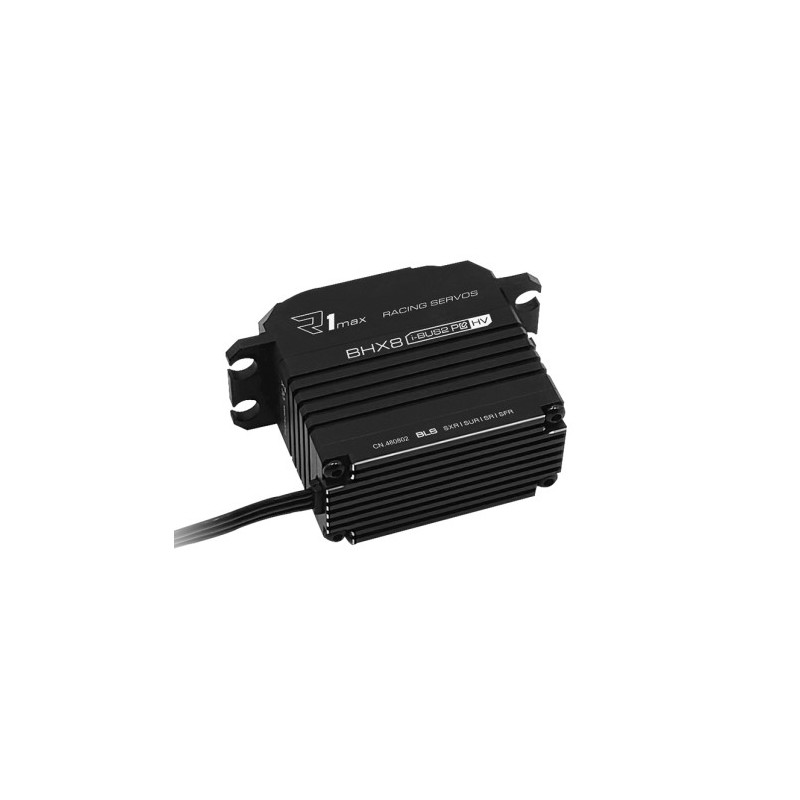

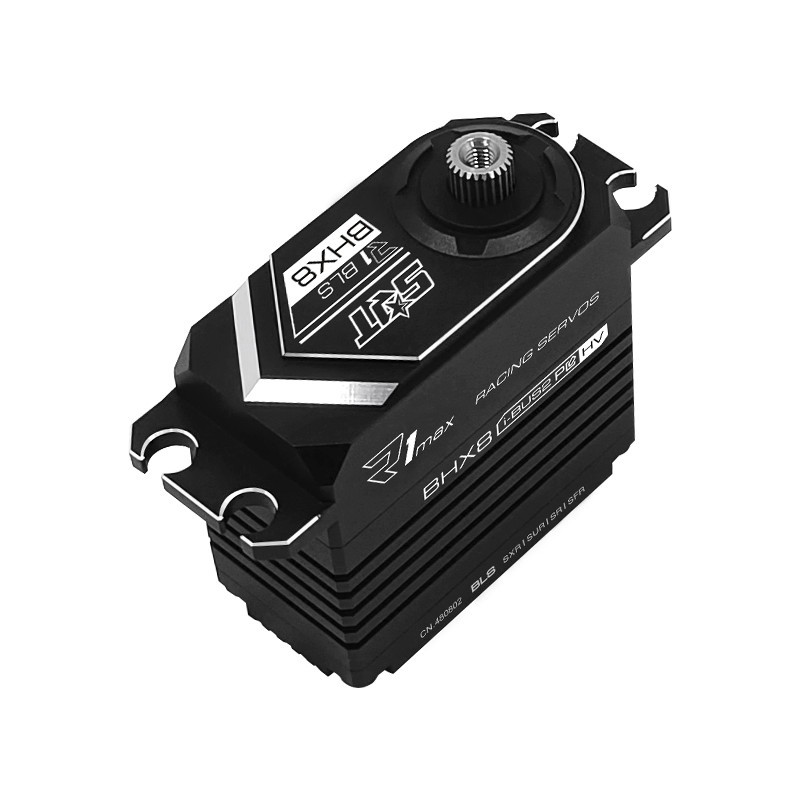

SERVO SRT X8 HV BRUSHLESS CAJA METALICA 55KG 0.078S.-1/8-1/5
Referencia: SRT-BHX8
Descripción
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.11 sec/60 degrees at no load
operating speed (7.4v): 0.078 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 50.0kg.cm (694.4 oz/in)
stall torque (7.4v): 55.0kg.cm (763.8 oz/in)
stall torque (8.4v): 60.0kg.cm (833.2 oz/in)
potentiometer drive: direct drive
dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
weight: 82.0g (2.89 oz)
connector wire length: jr 300 mm
Descripción
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.11 sec/60 degrees at no load
operating speed (7.4v): 0.078 sec/60 degrees at no load
operating speed (8.4v): 0.07 sec/60 degrees at no load
stall torque (6.0v): 50.0kg.cm (694.4 oz/in)
stall torque (7.4v): 55.0kg.cm (763.8 oz/in)
stall torque (8.4v): 60.0kg.cm (833.2 oz/in)
potentiometer drive: direct drive
dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
weight: 82.0g (2.89 oz)
connector wire length: jr 300 mm
