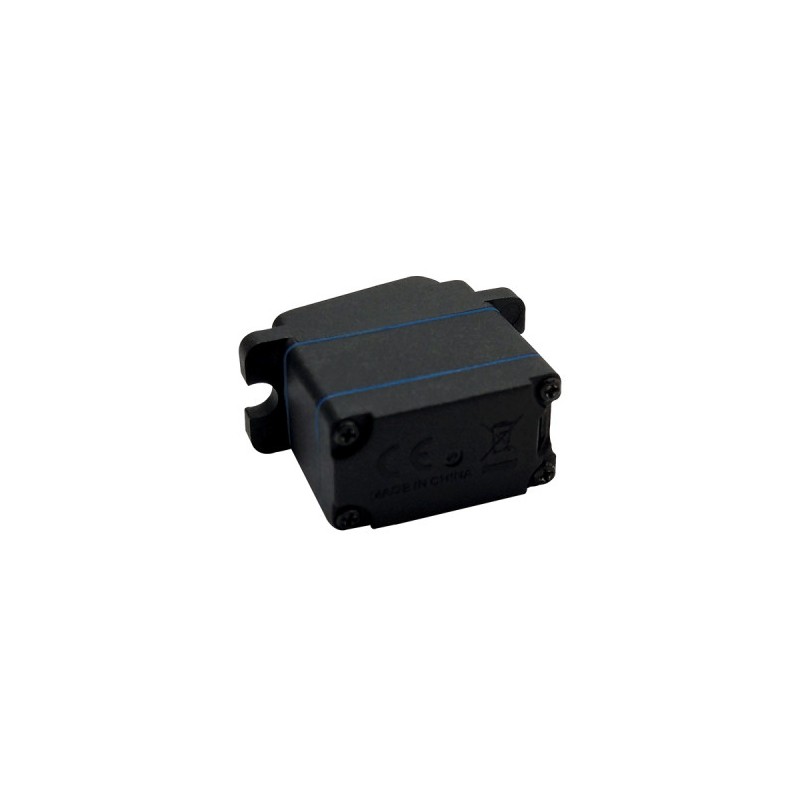

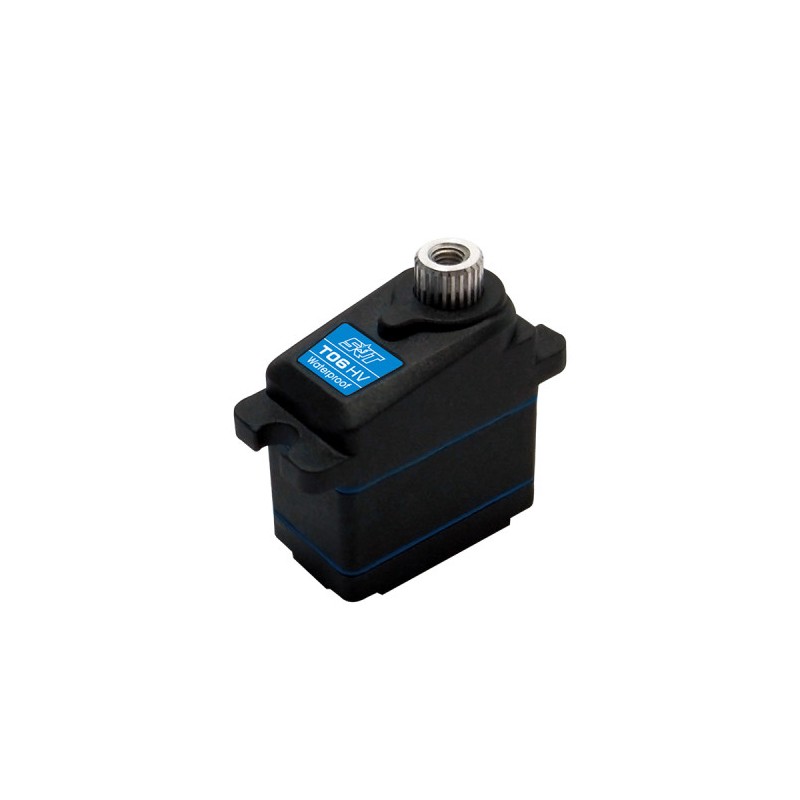

Referencia: SRT-T06
INFORMACIÓN DEL PRODUCTO:
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.16 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
stall torque (4.8v): 1.9kg.cm (26.4 oz/in)
stall torque (6.0v): 2.5kg.cm (34.7 oz/in)
stall torque (7.4v): 2.8kg.cm (38.9 oz/in)
potentiometer drive: direct drive
dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
weight: 16.0g (0.56 oz)
connector wire length: jr 300 mm
INFORMACIÓN DEL PRODUCTO:
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.16 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
stall torque (4.8v): 1.9kg.cm (26.4 oz/in)
stall torque (6.0v): 2.5kg.cm (34.7 oz/in)
stall torque (7.4v): 2.8kg.cm (38.9 oz/in)
potentiometer drive: direct drive
dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
weight: 16.0g (0.56 oz)
connector wire length: jr 300 mm
INFORMACIÓN DEL PRODUCTO:
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-7.4v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.16 sec/60 degrees at no load
operating speed (6.0v): 0.12 sec/60 degrees at no load
operating speed (7.4v): 0.10 sec/60 degrees at no load
stall torque (4.8v): 1.9kg.cm (26.4 oz/in)
stall torque (6.0v): 2.5kg.cm (34.7 oz/in)
stall torque (7.4v): 2.8kg.cm (38.9 oz/in)
potentiometer drive: direct drive
dimensions: 22.5x12.5x24.0 mm /0.89x0.49x0.94 in
weight: 16.0g (0.56 oz)
connector wire length: jr 300 mm

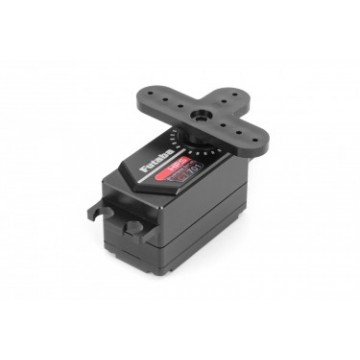

Futaba HPS-CT702 (30kg 0.07s/60°)
Servo dimensions Standard
Servo type Digital
Thrust at 6.0V [kg∙cm] 23
Thrust at 7.4V [kg∙cm] 30
Speed at 6.0V [s/60st.] 0.08
Speed at 7.4V [s/60st.] 0.07
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 8.4
Length [mm] 40.5
Width [mm] 21
Height [mm] 26.2
Weight [g] 53
Intended for On-road cars,Off-road cars
S.BUS Yes
S.BUS2 Yes
SR mode Yes
Water resistance Splash-resistant
INFORMACIÓN DEL PRODUCTO:
KEY FEATURES
- Ideal for 1/10 on road applications
- incredible efficiency and low power consumption
- Aluminium case for good heat dissipation
- NMB dual main bearings
- 25T output shaft
Application :
1/10 On-road, 1/10 Off-road, 1/8 On-road, 1/8 Off-road
- Full CNC machined alloy case
- High Voltage 6.0 - 8.4V
- Titanium gears
- Ball Raced
- Coreless motor
- Ultra high speed and torque
- Water resistant
Tech Specs:
Voltage range 6.0 - 8.4V
Speed @ 6.0V 0.07 sec/60°
Speed @ 7.4V 0.06 sec/60°
Speed @ 8.4V 0.05 sec/60°
Torque @ 6.0V 11.8 kg/cm
Torque @ 7.4V 14.4 kg/cm
Torque @ 8.4V 16.5 kg/cm
Dimensions (mm) 40.5x20.5x36
Weight 72g
INFORMACIÓN DEL PRODUCTO:
KEY FEATURES
- Ideal for 1/8 on road and 1/8 off road scale applications
- Superior Holding Torque
- incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminium case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 μsec Dead Band
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.15 sec/60 degrees at no load
operating speed (7.4v): 0.11 sec/60 degrees at no load
operating speed (8.4v): 0.10 sec/60 degrees at no load
stall torque (6.0v): 55.0kg.cm (763.8 oz/in)
stall torque (7.4v): 65.0kg.cm (902.7 oz/in)
stall torque (8.4v): 75.0kg.cm (1041.6 oz/in)
potentiometer drive: direct drive
dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
weight: 82.0g (2.89 oz)
connector wire length: jr 300 mm
INFORMACIÓN DEL PRODUCTO:
CARACTERÍSTICAS CLAVE
- Ideal para 1/10 en carretera y 1/8
aplicaciones fuera de la
carretera
- Caja de aluminio
intermedia - Rodamientos principales duales NMB - Impermeable superior - Eje de salida 25TAplicación:
1/10 en carretera, 1/10 off-road, 1/8 on-road, 1/8 off-road así como aviones y jets a gran escala y barco eléctrico
Éste es el Servo RSX8 Brushless de 37 Kg. y 0.075 s. de Ultimate Racing para coches de 1/8 que cumple con todos los requisitos de durabilidad, rendimiento y calidad necesarios para el más alto nivel de competición. Sirve tanto para dirección como para gas/freno.
INFORMACIÓN DEL PRODUCTO:
KEY FEATURES
- Ideal for 1/10 on road and 1/8 off road scale applications, as well as large scale airplanes and jets
- incredible efficiency and low power consumption
- 2 μsec Dead Band
Application :
1/10 On-road, 1/10 Off-road, 1/8 On-road, 1/8 Off-road & 600 700/ Helicopter
Features:
- Full CNC machined alloy case
- High Voltage 6.0 - 8.4V
- Titanium gears
- Ball Raced
- Coreless motor
- Ultra high speed and torque
- Water resistant
Tech. Specs:
Voltage range 6.0 - 8.4V
Speed @ 6.0V 0.09 sec/60°
Speed @ 7.4V 0.08 sec/60°
Speed @ 8.4V 0.07 sec/60°
Torque @ 6.0V 18.3 kg/cm
Torque @ 7.4V 22.6 kg/cm
Torque @ 8.4V 25.6 kg/cm
Dimensions (mm) 40.5x20.5x36
Weight 72g
Servo dimensions Standard
Servo type Digital
Thrust at 6.0V [kg/cm] 31
Thrust at 7.4V [kg/cm] 37
Speed at 6.0V [s/60st.] 0.14
Speed at 7.4V [s/60st.] 0.11
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 5 - 8.4
Length [mm] 41
Width [mm] 21
Height [mm] 38
Weight [g] 74
Intended for Aeroplanes,Helicopters,On-road cars,Off-road cars,Sailing boats,Boats
S.BUS Yes
S.BUS2 Yes
SR mode No
Water resistance Splash-resistant
Power Supply: 6.0V~7.4V
Speed (6.0V) : 0.12 sec/60°, (7.4V) : 0.09 sec/60°
Stall Torque (6.0V) : 31.4kg-cm, (7.4V): 40.2kg-cm
Servo dimensions Standard
Servo type Digital
Thrust at 7.4V [kg/cm] 30
Speed at 7.4V [s/60st.] 0.07
Servo gears Metal
Ball bearings 2×
High-voltage Yes
Power supply [V] 4.8 - 8.4
Length [mm] 40.5
Width [mm] 21
Height [mm] 26.2
Weight [g] 53
Intended for On-road cars,Off-road cars
S.BUS Yes
S.BUS2 Yes
SR mode Yes
Water resistance Splash-resistant
INFORMACIÓN DEL PRODUCTO:
CARACTERÍSTICAS CLAVE
- Ideal para 1/10 ON ROAD y 1/8 OFF ROAD
- Caja de aluminio intermedio - Rodamientos principales duales NMB - Impermeable superior - Eje de salida 25T
Aplicación :
1/10 en carretera, 1/10 todoterreno, 1/8 en carretera, 1/8 todoterreno, así como aviones y jets a gran escala y barco eléctrico
INFORMACIÓN DEL PRODUCTO:
El Servo SRT W35 es un servo HV con hasta 35kg de torque y resistente al agua ideal como servo de dirección para crawlers por sus piñones de acero y titanio.
Características:
• Ideal para 1/8 y 1/10 On-Road and Off-Road, crawler, etc..
• Caja de aluminio
• Waterproof
• Precisión superior
• NMB dual rodamientos principales
• 25T dientes piñon salida
Ideal for 1/8 on road and 1/5 off road scale applications
Superior Holding Torque
Incredible efficiency and low power consumption
Standard dimension make it perfect for vehicles that can benefit from a high quality servo
CNC Machined aluminum case for exceptional cooling
Programmable High torque Brushless servo
SSR mode compatible
25T output shaft
2 μsec Dead Band
1-Year Limited Warranty
Features:
- Full CNC machined alloy case
- Digital LHV 5.0 - 8.4V
- Metal gears
- Ball Raced
- Core DC motor
- High speed and torque
- IP67 Waterproof
Tech. Specs:
Voltage range 5.0 - 8.4V
Speed @ 6.0V 0.15 sec/60°
Speed @ 7.4V 0.13 sec/60°
Speed @ 8.4V 0.11 sec/60°
Torque @ 6.0V 17.7 kg/cm
Torque @ 7.4V 23.6 kg/cm
Torque @ 8.4V 27.3 kg/cm
Dimensions (mm) 40.4x20.4x36.7
Weight 75g / 2.55oz
